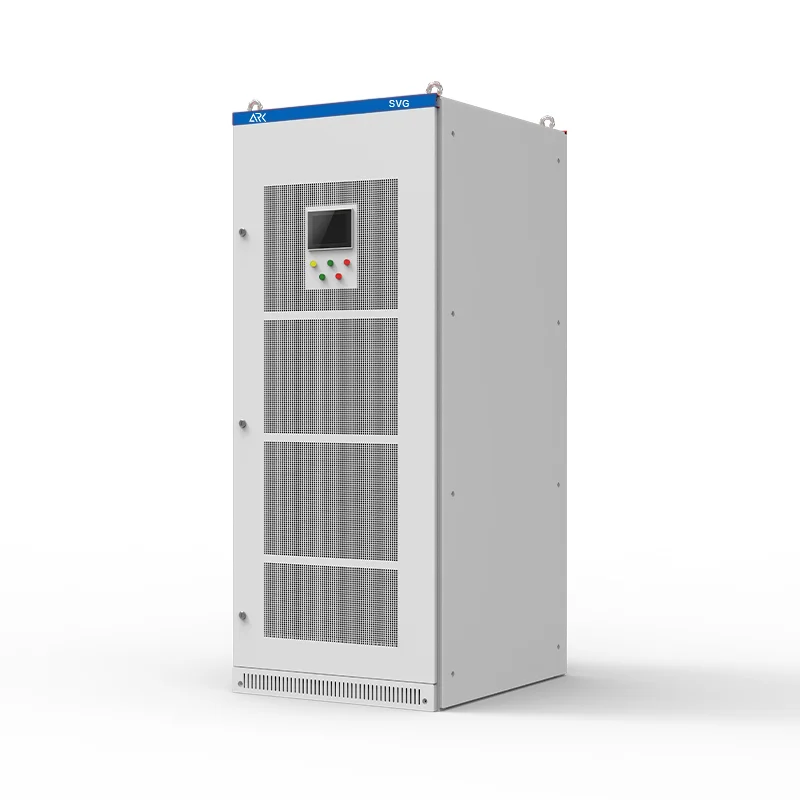

90KVar Series Static Var Generator 500V High Reactive Power Compensation Rate

Product Categories

Nanjing Ark Tech Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : ARK

Model Number : SVG

Certification : CE

Place of Origin : CHINA

MOQ : 1UNIT

Payment Terms : L/C, T/T

Delivery Time : 15

Certifications : CE, UL, IEC, IEEE

Communication Interface : Modbus, Profibus, IEC 61850

Compensation Capacity : 90KVar

Control System : Advanced Digital Signal Processor (DSP)

Life : more than 20 years

Operating Temperature : 0-40°C

Overall Efficiency : ≥97%

Power Grid Frequency : 50Hz/60Hz (range:±10%)

Rated Power : Up to 50 Mvar

Response Time : <10ms

Structure : Modular structure

Voltage : Low voltage

Voltage Range : Up to 36 kV

Warranty : 2 years

Weight : Depends on power rating and cooling method

Contact Now

Products Description

Product Paramenters

TYPE	Series 220V	Series 400V	Series 500V	Series 690V
Max neutral w ire current	5KVar	10KVar15KVar/ 35KVar/50KVar/ 75KVar/100KVar	90KVar	120KVar
Nominal voltage	AC220V(-20%~+20%)	AC380V(-20%~+20%)	AC500V(-20%~+20%)	AC690V(-20%~+20%)
Rated frequency	50Hz±5%
Network	Single phase	Three-phase three-wire/three-phase four-wire
Response time	<10ms
Reactive power compensation rate	>95%
Machine efficiency	>97%
Switching frequency	32kHz	16kHz	12.8kHz	12.8kHz
Feature selection	Deal with harmonics/Deal with harmonics and reactive power	Deal with harmonics/Deal with harmonics and reactive power/ Deal with harmonics and three-phase unbalance /Three options
Numbers in parallel	No limitation. A single centralized monitoring module can be equipped with up to 8 power modules
Communication methods	Two-channel RS485 communication interface (support GPRS/WIFIwireless communication)
Altitude w ithout derating	<2000m
Temperature	-20~+50°C
Humidity
Pollution level	Below level Ⅲ
Protection function	Overload protection, hardware over-current protection, over-voltage protection, power grid voltage imbalance protection, power failure protection, over-temperature protection, frequency anomaly protection, short circuit protection, etc
Noise	<50dB	<60dB	<65dB
Installation	Rack/wall hanging		Rack
Into the way of line	Back entry (rack type), top entry (wall-mounted)		Top entry
Protection grade	IP20
